ELGC-300-DA Series 300W DALI 2 LED Power Supply

2019-05-20 | Return

INTRODUCTION
The ELGC-300-DA series is a newly developed LED driver with DALI 2 dimming function which can be applied with intelligent dimming control interface and further increase the value of the luminaires.

Besides, the ELGC-300 series adopts the constant power mode design to reduce the compatible issue. It is also equipped with 3 in 1, DALI 2 and programmable dimming functions. The isolation design between the output and dimming cables is added to enhance the safety of luminairy usage. ELGC-300 series is compliant with the latest safety regulation: IEC61347/ UL8750 and GB7000.1.

ELGC-300 series key features include wide input voltage range from 100 to 305V. It can be used at 100% load output with driver current from 1300 m A ~8000 m A at 300w full power output. High efficiency reach 94.5% with surge protection 6k V/4KV design.

Model	ELGC-300-L-□	ELGC-300-M-□	ELGC-300-H-□
Output Voltage Range	116~232V	58~116V	29~58V
Full Power Current Range	1300~2000 m A	2600~4000m A	5200~8000 m A

FETURES
- Full power at 65~100% operation(Constant Power mode)
- Protection function: SCP/OVP/OTP
- IP67 design for indoor and outdoor installations
- Function options: output adjustable via potentiometer
- 3 in 1 (dim to off) and DALI 2 dimming
- Surge protection: 6KV/4KV
- Lifetime >50,000 hrs and 5 years warranty

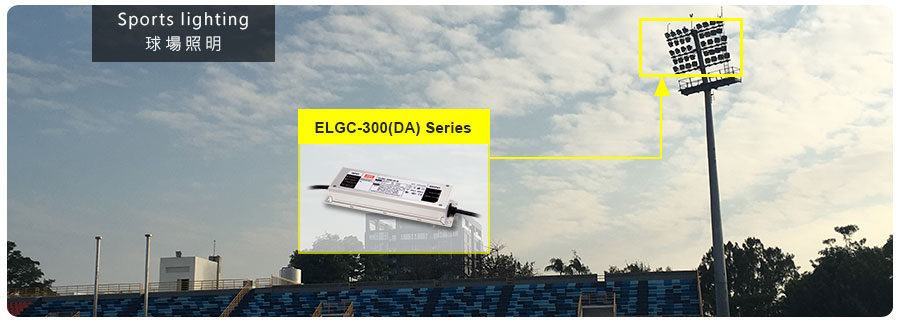

APPLICATION

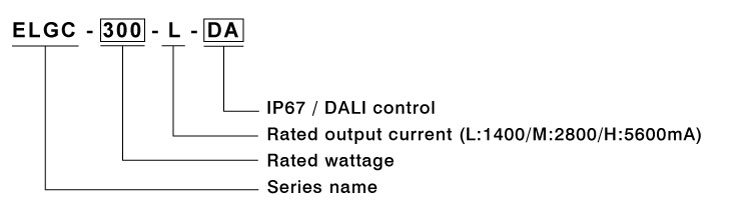

ORDER INFORMATION

DOWNLOAD SPEC
ELGC-300 Series

source：http://www.meanwell.com
