Class-Leading Low Conduction Loss Contributes to High Efficiency and Miniaturization of Applications

ROHM recently announced the addition of four new automotive-grade 1200V-rated IGBTs which are ideal for inverters used in electronics compressors and for switching circuits used in positive temperature coefficient (PTC) heaters. The new RGS seriesrepresents ROHM’s large lineup of AEC-Q101-compliant IGBTs in both 1200V-rated and 650V-rated variants. This series delivers class-leading low conduction loss that contributes to reducing size and to improving efficiency of applications.

In recent years, an increasing number of automotive makers are offering electric vehicles in response to growing environmental awareness and rising fuel costs. Increasing the number of electric vehicles also advances the need for electric compressors often driven with IGBT’s. Internal combustion engine vehicles have used the heat dissipated from the engines themselves as source to heat the cabin. However, the demand for systems that use circulating warm water with PTC heater as a heat source has been increasing. IGBTs that operate at low frequency are commonly used in inverters and switches for these applications. Especially in electric vehicles, the power consumption of the compressor and heater affects the driving range, and, therefore, improved efficiency is desirable.

Another trend in this market is the increase in battery capacity to improve driving range. Especially in Europe, higher voltage batteries (800V) require power devices featuring low loss and higher withstand voltages, which increases the demand for both 650V-rated and 1200V-rated IGBTs.

In response, ROHM added four new devices of 1200V-rated IGBTs and expanded its lineup of AEC-Q101compliant IGBTs. This class-leading low conduction loss IGBT allows compact and highly-efficient designs. 1200V-rated devices featuring a short-circuit resistance of 10 μsec (Tj=25ºC) also ensures the reliability for automotive applications.

Availability: Now



Key Advantages

1. Class-leading low conduction loss
Optimized device structure reduces VCE(sat) to 1.70V, which enables approximately 10% to 15% reduction in conduction losses compared to conventional products.

For electric compressors and PTC heaters, conduction loss is a more important feature than switching characteristics due to the low drive frequency.

2. Supports a broader range of applications with large portfolio
ROHM developed four new IGBTs and offers a total of 11 devices including 650V devices. This series has both simple IGBT type and built-in freewheel diode type, enabling customers to select the most suitable device.

Part Number	Specification			Built-in Diode	Package	AEC-Q101 Qualified
	VCES [V]	IC @100ºC [A]	VCE(sat) typ. [V]
RGS50TSX2DHR	1200	25	1.70	Yes	TO-247N	Yes
RGS50TSX2HR				—
RGS80TSX2DHR		40		Yes
RGS80TSX2HR				—
RGS30TSX2DHR		15		Yes
RGS30TSX2HR				—
RGS60TS65DHR	650	30	1.65	Yes
RGS60TS65HR				—
RGS80TS65DHR		40		Yes
RGS80TS65HR				—
RGS00TS65DHR		50		Yes
RGS00TS65HR				—
RGS00TS65EHR				Yes

◊Under Development

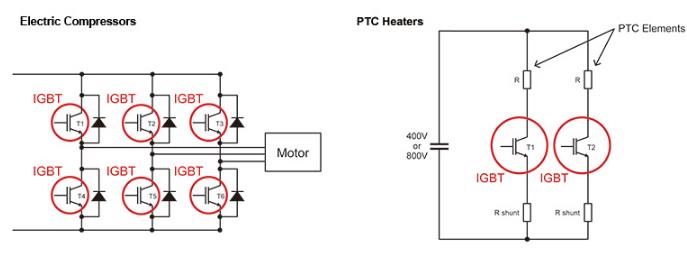

Application Examples
