Launch of the photocouplers for the gate drive of IGBT and MOSFET which is the thin package with high temperature operation : TLP5771H, TLP5772H, TLP5774H

2021-05-14 | Return

Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched the TLP5771H, TLP5772H and TLP5774H which are photocoupler products using the SO6L package. And they can

drive gate of small or medium class MOSFETs or IGBTs with isolation from control circuits.

The new products have increased their maximum operating temperature to 125 ºC from the 110 ºC of existing products[1]. The major characteristics have also been specified with the operating temperature ratings (-40 to 125 ºC), making it easier to design and maintain a temperature margin.

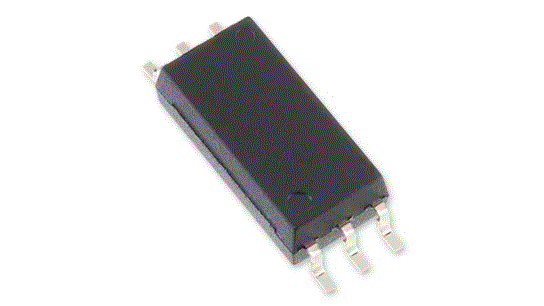

The package is slim with a maximum height of 2.3 mm, helping to improve the flexibility in the layout of parts on a system board. In addition, the package can be mounted on the land pattern for Toshiba’s conventional products[2] using the SDIP6 package[3]. Therefore, the products can be mounted on the back side of a board or where height is limited, replacing conventional products.

Notes :
[1] Existing products : TLP5771, TLP5772 and TLP5774
[2] Conventional products : SDIP6 package TLP700H and TLP701H
[3] Package height 4.15 mm (max)

Features

> Large peak output current ratings (@Ta= -40 to 125 °C):
    IOPH/IOPL= -1.0/+1.0 A (TLP5771H)
    IOPH/IOPL= -2.5/+2.5 A (TLP5772H)
    IOPH/IOPL= -4.0/+4.0 A (TLP5774H)
> High operating temperature ratings : Topr max=125 °C
> Rail-to-rail output

Applications

Isolation gate driver of IGBTs and MOSFETs

> Industrial equipment (Industrial inverters and power conditioner for photovoltaic inverters, etc.)
> Home appliance equipment (Air conditioner inverters, etc.)

Product Specifications

(Unless otherwise specified, @Ta= -40 to 125 °C)

Part number			TLP5771H	TLP5772H	TLP5774H
Package			SO6L
Rail-to-rail output			Built-in
Absolute maximum ratings	Peak output current I_OPH/I_OPL (A)		-1.0/+1.0	-2.5/+2.5	-4.0/+4.0
Electrical characteristics	Supply voltage V_CC min/max (V)		10/30
	Supply current I_CCH, I_CCL max (mA)		3
	Threshold Input current (L/H) I_FLH max (mA)		2
Switching characteristics	Propagation delay time t_pLH, t_pHL max (ns)		150
	Propagation delay skew t_psk min/max (ns)		-80/+80
	Common-mode transient immunity CM_H, CM_L min (kV/μs)	＠T_a=25 °C	±35

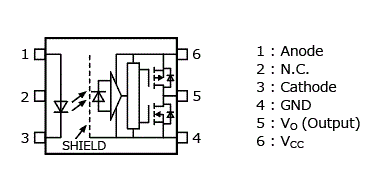

Pin Assignment

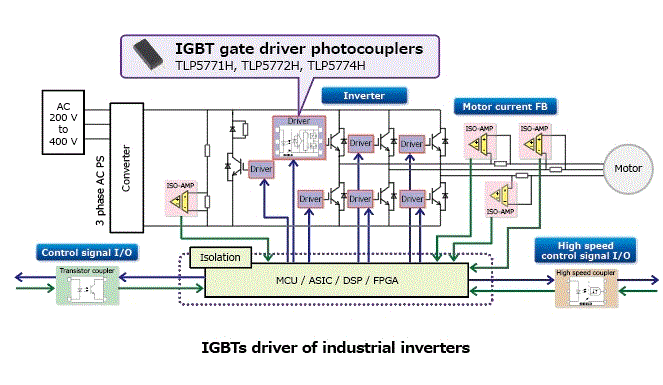

Application Circuit Example

Note :
The application circuits shown in this document are provided for reference purposes only. Thorough evaluation is required, especially at the mass-production design stage.
Providing these application circuit examples does not grant any license for industrial property rights.

Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
