Toshiba Releases 650V Super Junction Power MOSFETs in TOLL Package that Help Improve Efficiency of High Current Equipment

2021-03-11 | Return

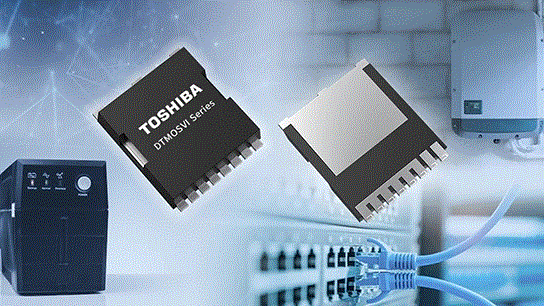

TOKYO—Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched 650V super junction power MOSFETs, TK065U65Z, TK090U65Z, TK110U65Z, TK155U65Z and

TK190U65Z, in its DTMOSVI series that are housed in a TOLL (TO-leadless) package. Volume production shipments start today.

TOLL is a surface-mount package that has an approximately 27% smaller footprint than the usual D2PAK package. It is also a 4-pin type package that allows Kelvin connection of its signal source terminal for the gate drive. This can reduce the influence by the inductance of the source wire in the package to bring out the high-speed switching performance of the MOSFETs, suppressing oscillation when switching. Compared to Toshiba’s current product, TK090N65Z[1], the turn-on switching loss is reduced by about 68% and turn-off switching loss by about 56%[2][3]. The new MOSFETs are suitable for power supplies for industrial equipment such as data centers and photovoltaic power conditioners.

The combination of TOLL packaging with the latest[4] generation DTMOSVI process technology extends the line-up to cover a low On-resistance of up to 65mΩ(max)[5]. Toshiba will continue to enhance products with the TOLL package to contribute to equipment downsizing and improved efficiency.

Notes:
[1] A product in DTMOSVI series with equivalent voltage and On-resistance that uses the TO-247 package without Kelvin connection
[2] As of March 10, 2021, values measured by Toshiba (Test condition: VDD=400V, VGG=+10V/0V, ID=15A, Rg=10Ω, Ta=25℃).
[3] TK090U65Z only
[4] As of March 10, 2021
[5] TK065U65Z only

Applications
> Data center (Server power supplies, etc.)
> Power conditioners for photovoltaic generators
> Uninterruptible power systems

Features
> Thin and small surface-mount package
> Turn-on and off switching loss are reduced by using 4-pin type package.
> Latest[4] generation DTMOSVI series

Follow the links below for more on the new product.

TK065U65Z
TK090U65Z
TK110U65Z
TK155U65Z
TK190U65Z

Follow the link below for more on MOSFETs.

MOSFETs
