AKM releases only 10nA current consumption voltage detector

2020-09-08 | Return
AKM releases only 10nA current consumption voltage detector; Ultra Low Power Voltage Detector is ideal for, monitoring and protection for LIC’s, EDLC’s and small LiB’s

Description

To provide renewable and sustainable energy is a big issue, Lithium-ion Capacitors (LIC) and Electric Double Layer Capacitors (EDLC) technology have been evolving year by year. Likewise, low current consumption protection circuit is a key to leverage those capacitor’s performance and helps long product life.

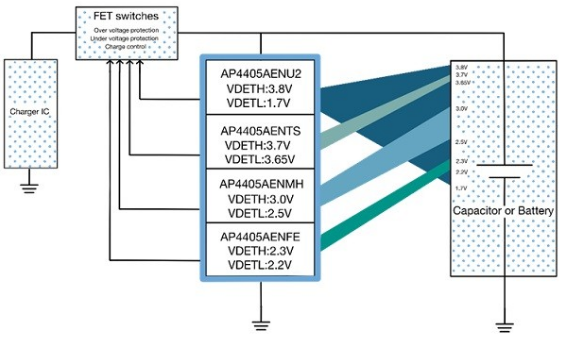

Asahi Kasei Microdevices Corporation (AKM) releases a highly accurate CMOS voltage detection IC, the AP4405AEN in response to this demand. It integrates a voltage detection circuit, P-MOSFET, N-MOSFET and on & off function to control an external device, while featuring the world class* ultra-low power consumption of 10nA (typical). Six different detection voltages have been in mass-production.

The AP4405AEN’s low power consumption also provides one of the best energy harvesting power management circuits.

* As of September 2020, AKM survey



Features

Ultra-low Power Consumption:The AP4405AEN has low operation current of 10nA (Typ). Thus, voltage detection circuits with low current consumption can be designed with the AP4405AEN.

Support Wide Hysteresis:Both over-discharge and overcharge protections can be designed because the AP4405AEN has wide detection voltage range.

Small Package:The AP4405AEN is housed in a 16-pin HWQFN (3.0 × 3.0mm 0.5mm pitch), ideal for space saving small printed circuit boards.

Applications

> Monitoring charging capacitors such as Lithium-ion Capacitors (LIC) and Electric Double Layer Capacitors (EDLC)
> Protection for small Lithium-ion Battery (LiB)
> Power control for energy harvesting devices

Product Details


Ultra low power voltage detector

AP4405AEN

Power IC for Energy Harvesting

Source:http://www.akm.com/
