NJR begins Mass Production of Audio Volume MUSES72323 with high performance and high quality sound

2020-04-09 | Return
New Japan Radio (NJR) launches an audio volume "MUSES72323" with high performance and high quality sound and claims it has entered mass production.

General Description
MUSES72323 is an audio volume of "MUSES" series with high performance and high quality sound.
It has high operating voltage up to ±18V, low distortion, low output noise and 0.25dB step control.
Employing external amplifiers will offer designer more flexible circuit design chance.
MUSES72323 is suitable for high-end audio equipment and professional audio equipment pursuing high performance and high quality sound

About MUSES
MUSES is a semiconductor device brand name of the audio products which pursued high quality sound.
MUSES is a unique original series of products produced based on the following concept.

 1. Pursuit of high quality sound
 2. Faithful pursuit of original sound without coloring, exaggeration and loss
 3. Pursuit of the excellent sound shocking person's heart that cannot be shown in specification number.

Features

High quality sound
MUSES72323 is an audio volume flagship product developed based on the MUSES concept. We developed it taking advantage of the circuit technology, semiconductor process technology and assembly technology that have been cultivated in the MUSES series and repeating trial listening many times.

High performance
- High dynamic range with the operating voltage up to ±18V
- 0.25dB step adjustment
- Low noise, low distortion ※1
- Reduce the noise generated during volume adjustment combining zero cross detection circuit ※2 and soft step circuit ※3

Flexible design for high quality sound system

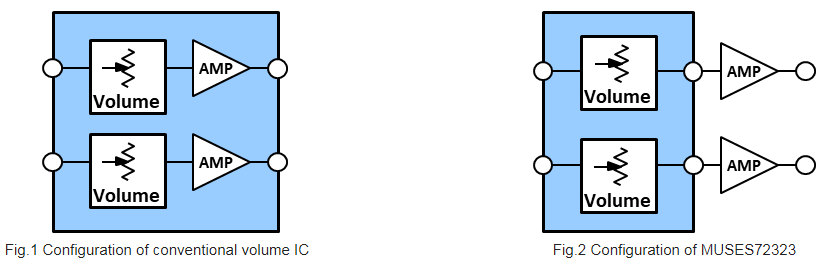

In order to configure high quality sound system freely, operational amplifier is used as external component, so flexible high quality sound design is possible.

Because the MUSES72323 is a semiconductor volume, the variation between channels can be reduced. In addition, if it is combined with the MUSES series amplifiers, higher quality sound system can be achieve



Characteristics

Part Number

MUSES72323

Number of Channels

2

Built-In Operational Amplifier

No

Operating Voltage Range
(Analog/Digital)

±10 to ±18V
+3.0 to +5.5V

Volume

0 to -111.75dB
0.25dB step, Mute

Gain※4

+21 to 0dB
3dB step

Total Harmonic Distortion※1

0.00024%

Output Noise Voltage※1

-124dBV
(0.63μVrms)

Zero Cross Detection Circuit※2

Soft Step Circuit※3

Control Format

3-wired serial control

Number of using chips on same bus line

4

Package

SSOP32
11mm x 7.6mm

Minimum Order Quantity

100pcs


※1 Confirm to the characteristics of the combined amplifiers. The table shows an example of low noise amplifier.
※2 Zero cross : this function reduces audible noise generated during gain adjustment changing the volume when the input signal is near GND (reference voltage).
※3 Soft step : this function reduces the zipper noise generated during gain adjustment changing the volume by smaller step.
※4 The gain can be adjusted by 0.25dB step with the volume control data.



Applications
High-end audio equipment
Professional audio equipment

Production Schedule
In mass production
Learn more about MUSES72323
MUSES72323 Data Sheet
